Neonatal & Paediatric Ventilator-SW21 Ventilator

Neonatal Care Unit Equipment - Shreeyash SW 21

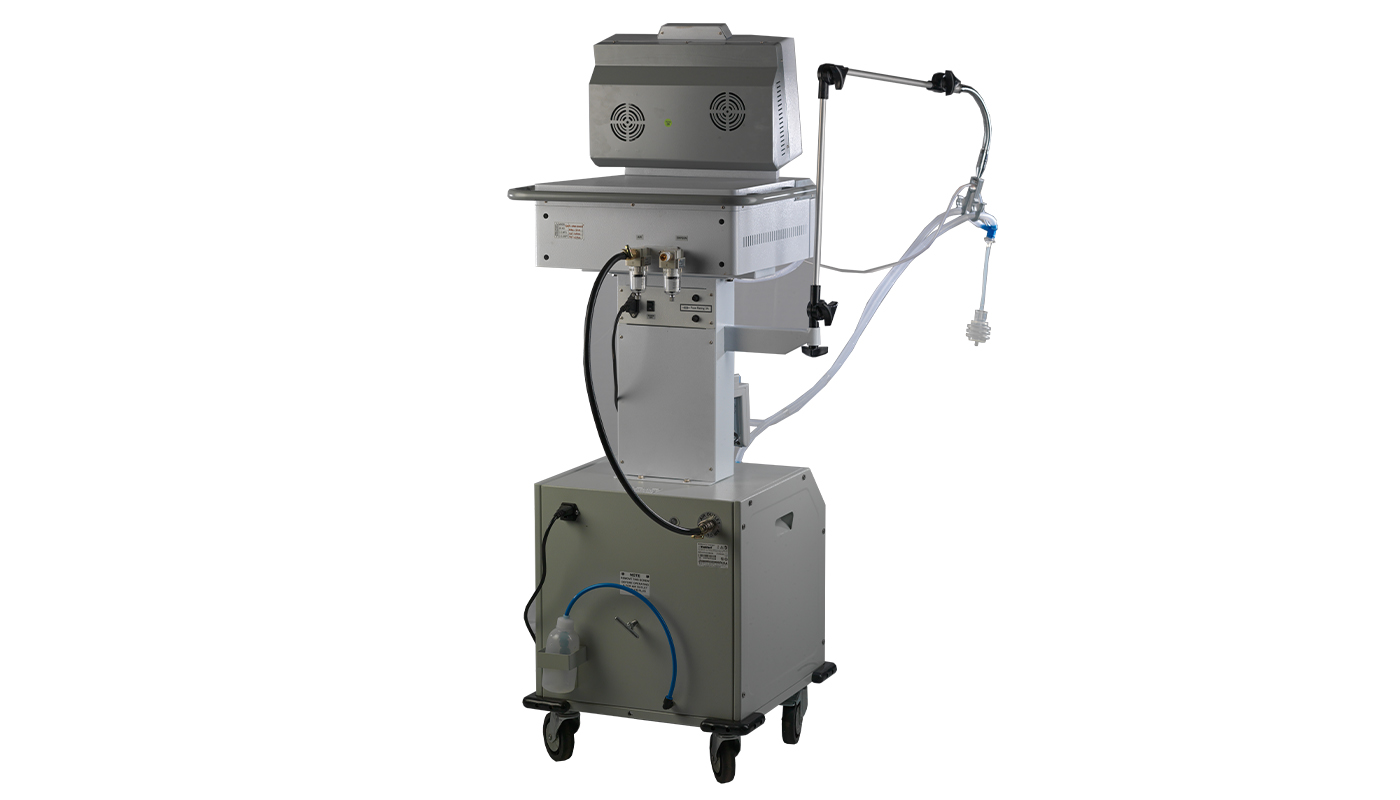

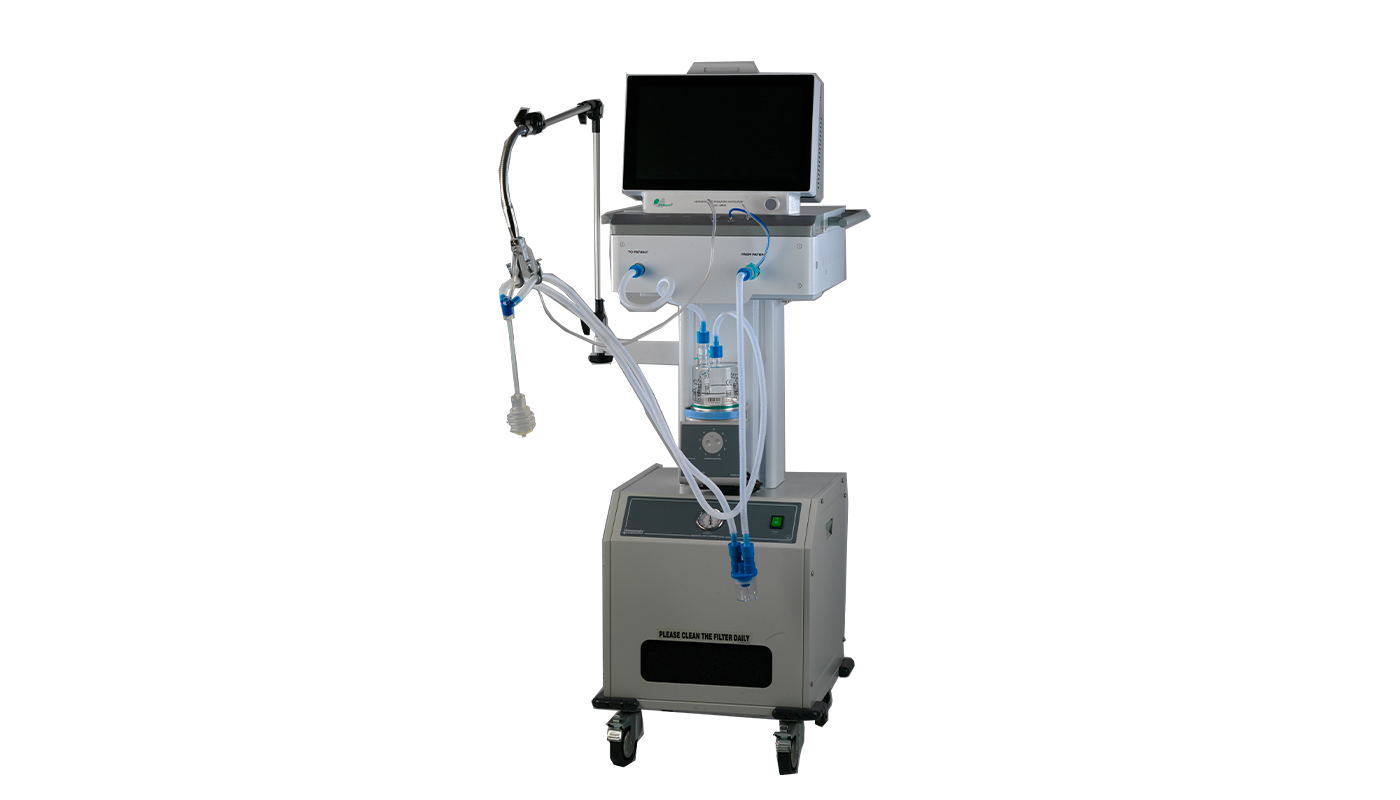

SW 21 Ventilator is a Dedicated Neonatal & Pediatric Ventilator with different modes of neonatal ventilator to assist the patient as per the need. Auto mode facility & Non Invasive High Flow Oxygen therapy puts this device in the class of most updated Ventilators. 'Shreeyash SW 21" is a Pressure & Volume controlled, Time cycled, Continuous Flow Respirator that is intended for Neonatal & Paediatric use.

Special Functions:
  • 15 inches large touch screen with Rotary Knob for setting the parameters.
  • SIMV plus pressure supprt.
  • Auto mode in ACMV mode.
  • Auto Mode in CPAP + PS Mode.
  • Inbult High Frequency Ventilation mode using flow chopping mechanism.
  • Non-invasive High Flow Nasal CPAP (HFNC Mode)
  • CPAP plus pressure support. This specialty mode puts the ventilator in the category of the most updated ventilators & is a boon for patients with "FLAIL" Chest.
  • On Line Inspiratory & Expiratory Hold.
  • Provision to connect Nebulizer kit & ETCO2 sensor.
  • Suction
Following Invasive & Non Invasive modes provided.
  • ACMV Pressure
  • ACMV Volume
  • SIMV + PS in PC mode
  • SIMV + PS in VC mode
  • PRVC
  • BiPAP
  • CPAP + PS
  • APRV
  • High Flow & HFFC (High Frequency Flow Chopping Mechanism)
Shreeyash SW 21 is provided with HFFC

(High Frequency Flow Chopping Mechanism) mode for treating LBW babies.

The dinician can set the Frequency from 5 to 15 Hertzs, I:E ratio can be set from 1:1 & 1:2, the power (Amplitude) can be set from 0 to 100%. MAP can be set up to 30 CM H2O, Bias flow is servo controlled display of delivered Tidal Volume & DCO2 helps the clinician to non Invasively monitor the pulmonary mechanics.

Display:

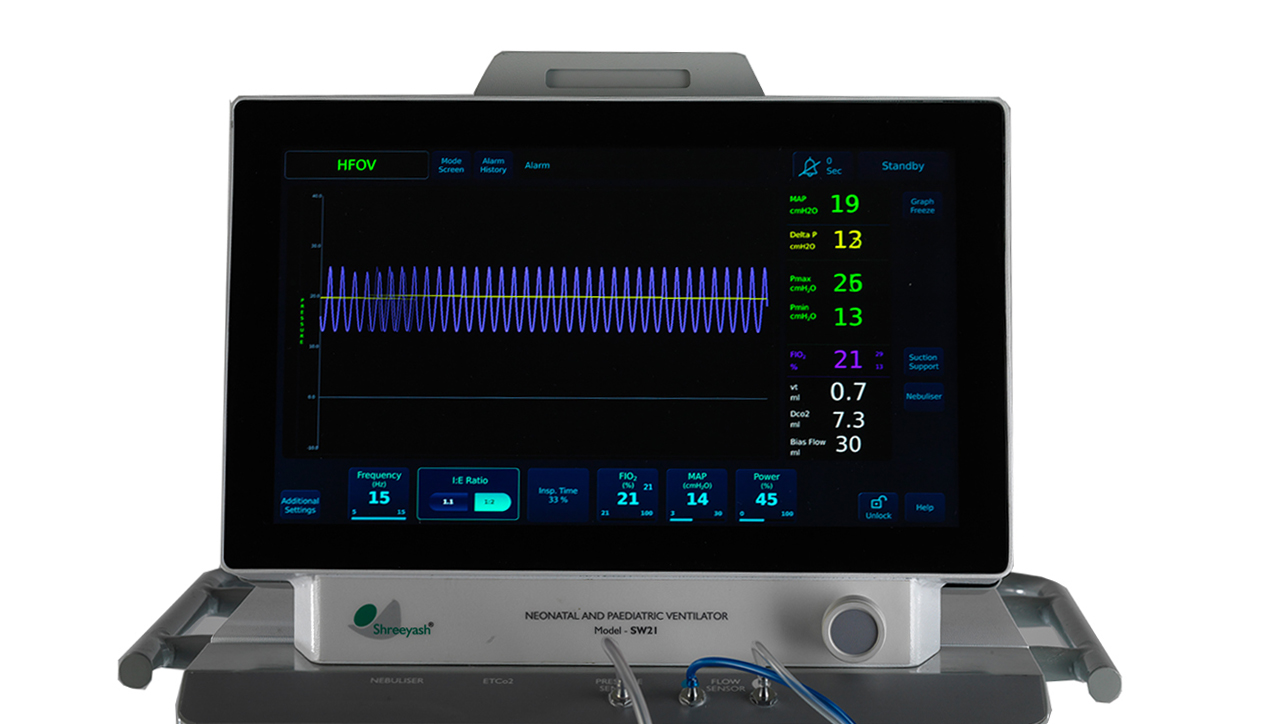

A Fifteen inches touch screen is provided that indicates, Flow v/s Time, Volume v/s Time & Pressure v/s Time graphs. It also indicates Pressure Volume, Flow Volume & Pressure Flow loops. It also display's various parameters like set & delivered PIP, PEEP, Set & Delivered Tidal Volume, FIO2, ongoing mode of ventilation, I:E ratio, Inspiration time etc.

Ventilator is provided with a Battery Backup which can operate the ventilator for 4 Hours when the battery is in fully charged condition.
