Air Handling Unit

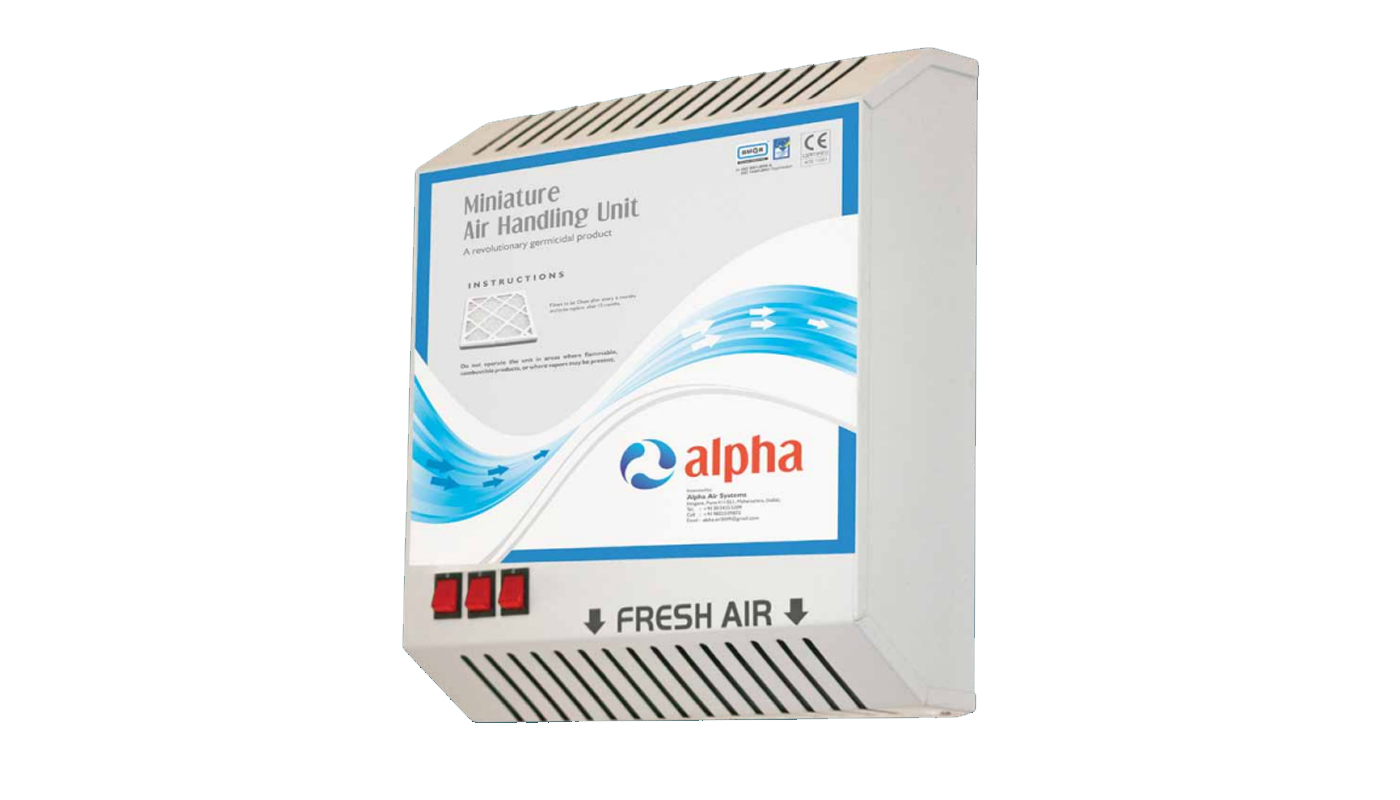

The Alpha Miniature Air Handling Unit is an advanced air sterilization system designed to combat airborne infections caused by bacteria, spores, and moulds. Compact and portable, it is highly efficient, destroying over 99.97% of micro-organisms in the air. Utilizing UV tubes within a specially designed reflective chamber, it maximizes germicidal power through controlled airflow. Tested rigorously under both field and laboratory conditions, the Alpha unit has proven effective against a wide range of airborne pathogens, making it ideal for use in hospitals and other environments where air sterilization is critical.
Overview
Specifications
Features
Alpha Miniature Air Handling Unit is a revolutionary new germicidal product for air sterilization. It sterilizes premises against airborne infection caused by bacteria and spores. It is compact, portable, easy to use and maintain and complies with International Statutory Safety Regulations. The Alpha unit is capable of destroying greater than 99.97% of micro-organisms in the air.
UV tubes arranged in a mathematically designed reflective chamber, controlled airspeed and lengthwise flow of air in close proximity to the tubes provides maximum killing power even for the toughest bacteria, germs, spores and moulds.
Alpha has been exhaustively tested under field and laboratory conditions. A range of trials performed by Microbiology Laboratories employed a number of different test protocols to measure the machine’s efficiency. Tests against both airborne and normally static organisms proved equally effective across a wide range of genera including gram positive and gram negative bacteria, moulds.
Unit’s performance & trials were carried out within various hospitals in and around Pune.
- Height: 460 mm
- Width: 415 mm
- Weight: 9 Kg
- Electrical: 220 Volts
- Power Consumption: 60 Watts
- Fan Type: 80 C.F.M.
- dB Rating: 40 dB
- Pre Filter: Non woven poly - 5 micron
- A.C. Filter: Silver impregnated carbon filter
- Hepa Filter: Efficiency 99.97% - 0.3 micron
- E.S.P.: Germicidal type
- High Voltage: Anion Ion Generator
- Area Recommended: 2500 cu feet
- Installation Method: Wall mounted
Hospitals and Healthcare:
- Operation Theatres
- Burns Units
- Neo-Natal Wards
- Intensive Care Units (ICUs)
- Post-Operative / Recovery Rooms
- Orthopedic Rooms/Wards
- Isolation Rooms/Wards
- Microbiology / Pathology Labs
- Culture Rooms
- Sterilization Departments
- Mortuaries/Morgues
- Waiting & Consulting Rooms
- General Wards (OPDs)
Pharmaceutical Industry:
- Microbiological Labs
- Clean Rooms
- Pass Boxes
- Packing Areas
- Sterile Storage Rooms
- Sterilization Departments
Alpha Miniature Air Handling Unit can even be used in restrooms and pantries for effective removal of odour.
